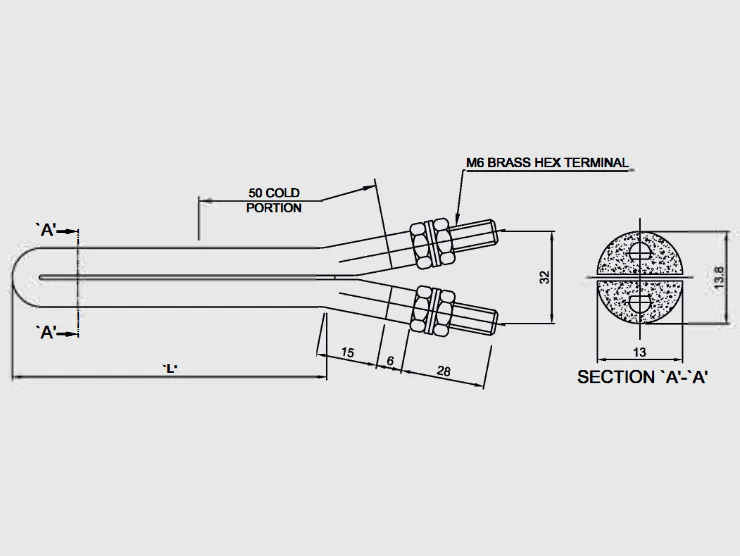

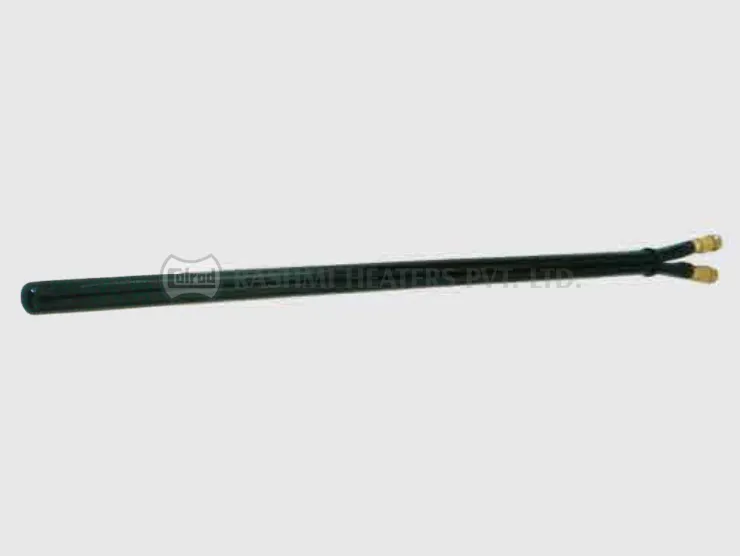

D Type Foundry Heaters
(Core Shooter Heaters for Foundry Application)
×
![]()
CAT NO |
RATING |
VOLTS (V) |
DIM 'L' |
Equivalent Inch |
D 50 W 06 |
450 W |
240 |
150 mm |
(6") |
D 50 W 08 |
550 W |
250 |
203 mm |
(8") |
D 50 W 09 |
550 W |
240 |
229 mm |
(9") |
D 60 W 10 |
600 / 750 W |
250 |
254 mm |
(10") |
D 75 W 11 |
750 W |
250 |
279 mm |
(11") |
D 75 W 12 |
750 W |
250 |
305 mm |
(12") |
D 10 K 13 |
750 / 1000 W |
240 |
330 mm |
(13") |
D 10 K 14 |
750 / 1000 W |
240 |
355 mm |
(14") |
D 10 K 16 |
1000 W |
240 |
406 mm |
(16") |
D 10 K 18 |
1000 W |
240 |
457 mm |
(18") |
D 15 K 20 |
1500 W |
270 |
508 mm |
(20") |
D 10 K 20 |
1000 W |
240 |
508 mm |
(20") |
D 10 K 24 |
1000 W |
240 |
610 mm |
(24") |
D 15 K 24 |
1500 W |
240 |
584 mm |
(24") |
D 20 K 29 |
2000 W |
240 |
737 mm |
(29") |
D 20 K 31 |
2000 W |
240 |
787 mm |
(31") |
D 20 K 36 |
2000 W |
240 |
914 mm |
(36") |
D 25 K 39 |
2500 W |
240 |
990 mm |
(39") |
Note : Other sizes with different rating can be manufactured as customer requirement. The above will be manufactured and supplied in two types of sheath material Incoloy or SS 321
