We Make Heating Elements for every possible Application Such Us:

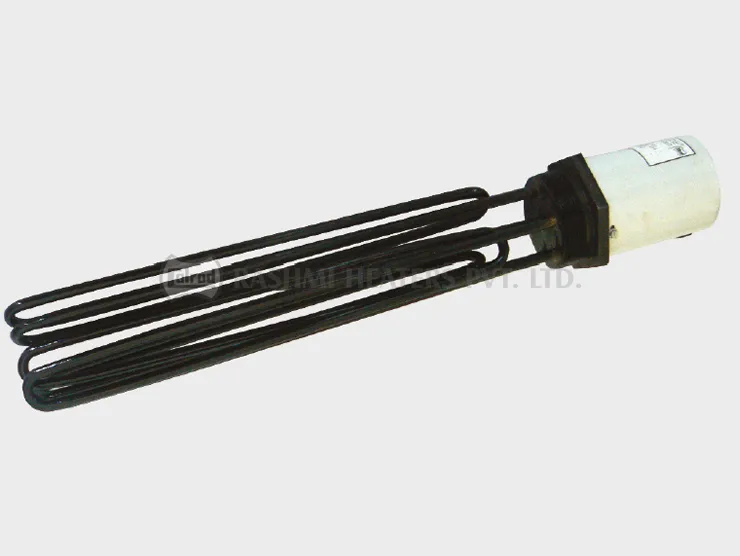

Oil Heating Elements

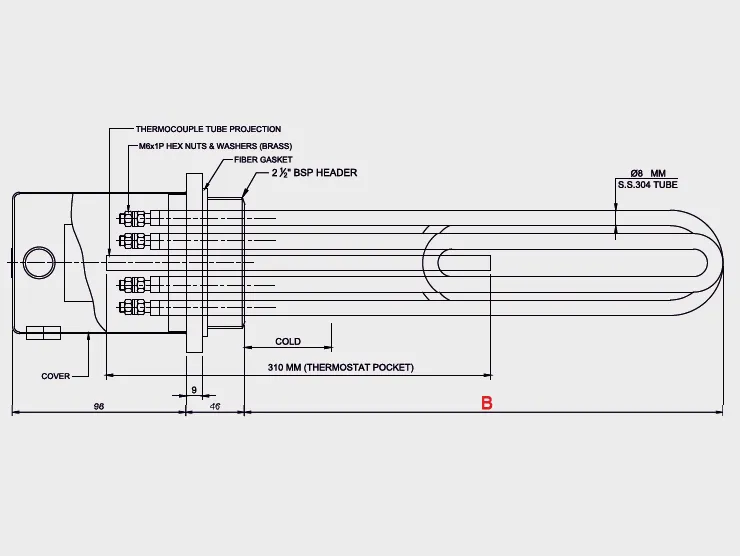

CAT NO	WATTS	VOLTS	B (Depth)	REMARKS
916101	1000 W	230	411 mm	Single element
916102	1500 W	230	411 mm	Single element
916103	2000 W	230	411 mm	Twin element
916104	3000 W	230/400	411 mm	Three element
916105	4000 W	230/400	548 mm	Three element
916106	4000 W	230/400	411 mm	Three element
916107	5000 W	230/400	550 mm	Three element
916108	6000 W	230/400	575 mm	Three element
916109	9000 W	230/400	710 mm	Three element
CAST IRON Header size for above - 2)1," BSP

Note.: D-Type heating elements of other size will be manufactured on request.

All Dimensions are Nominal

We can supply heating elements assembly with flamproof, exlosionproof, Ip-55, Ip-65 weatherproof junction box.
